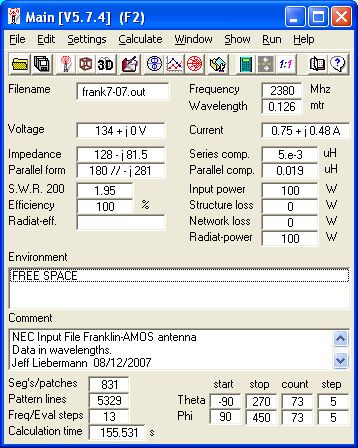

CM NEC Input File Franklin-AMOS antenna
CM Data in wavelengths.
CM Jeff Liebermann 08/12/2007
CM Setup for AMOS 7 dipoles 10/03/2008
CE
SY W=.008 'Wire radius
SY Rx=0.50/2, Rnx=4 'Reflector width / 2 , number of wires
SY Ry=6.00/2, Rny=20 'Reflector height / 2 , number of wires
SY Dl=0.372512 'Half of first element
SY Dh=0.199048 'Distance from reflector to dipole
SY D=0.13403 'Stub Length
SY E=0.183352 'Stub width
SY B=0.651474 'Length of 2nd element
SY C=0.571681 'Length of 3rd element
GW 1 11 Dh 0 Dl Dh 0 -Dl w 'Dipole driven element
GW 3 5 Dh 0 -Dl Dh-D 0 -Dl w 'Stub
GW 4 3 Dh-D 0 -Dl Dh-D 0 -Dl-E w 'Stub width
GW 5 5 Dh-D 0 -Dl-E Dh 0 -Dl-E w 'Stub return
GW 6 9 Dh 0 -Dl-E Dh 0 -Dl-E-B w '2nd element
GW 7 5 Dh 0 -Dl-E-B Dh-D 0 -Dl-E-B w '2nd Stub
GW 8 3 Dh-D 0 -Dl-E-B Dh-D 0 -Dl-E-B-E w '2nd stub width
GW 9 5 Dh-D 0 -Dl-E-B-E Dh 0 -Dl-E-B-E w '2nd stub return
GW 10 9 Dh 0 -Dl-E-B-E Dh 0 -Dl-E-B-E-B w '3rd element
GW 11 5 Dh 0 -Dl-E-B-E-B Dh-D 0 -Dl-E-B-E-B w '3rd stub
GW 12 3 Dh-D 0 -Dl-E-B-E-B Dh-D 0 -Dl-E-B-E-B-E w '3rd stub width
GW 13 5 Dh-D 0 -Dl-E-B-E-B-E Dh 0 -Dl-E-B-E-B-E w '3rd stub return
GW 14 9 Dh 0 -DL-E-B-E-B-E Dh 0 -Dl-E-B-E-B-E-C w '4th element
GW 20 5 Dh 0 Dl Dh-D 0 Dl w 'Stub
GW 21 3 Dh-D 0 Dl Dh-D 0 Dl+E w 'Stub width
GW 22 5 Dh-D 0 Dl+E Dh 0 Dl+E w 'Stub return
GW 23 9 Dh 0 Dl+E Dh 0 Dl+E+B w '2nd element
GW 24 5 Dh 0 Dl+E+B Dh-D 0 Dl+E+B w '2nd Stub
GW 25 3 Dh-D 0 Dl+E+B Dh-D 0 Dl+E+B+E w '2nd stub width
GW 26 5 Dh-D 0 Dl+E+B+E Dh 0 Dl+E+B+E w '2nd stub return
GW 27 9 Dh 0 Dl+E+B+E Dh 0 Dl+E+B+E+B w '3rd element
GW 28 5 Dh 0 Dl+E+B+E+B Dh-D 0 Dl+E+B+E+B w '3rd stub
GW 29 3 Dh-D 0 Dl+E+B+E+B Dh-D 0 Dl+E+B+E+B+E w '3rd stub width
GW 30 5 Dh-D 0 Dl+E+B+E+B+E Dh 0 Dl+E+B+E+B+E w '3rd stub return
GW 31 9 Dh 0 DL+E+B+E+B+E Dh 0 Dl+E+B+E+B+E+C w '4th element
GW 2 1 0 -Rx -Ry 0 -Rx -Ry+Ry/Rny w
GW 2 1 0 -Rx -Ry 0 -Rx+Rx/Rnx -Ry w
GM 0 Rny*2-1 0 0 0 0 0 Ry/Rny 2 'transform
GW 2 1 0 -Rx Ry 0 -Rx+Rx/Rnx Ry w
GM 0 Rnx*2-1 0 0 0 0 Rx/Rnx 0 2 'transform
GW 2 Rny*2 0 Rx Ry 0 Rx -Ry w
GS 0 0 299.8/2442.0
GE 0
GN -1
EK
EX 0 1 6 0 1. 0 'Voltage Source
FR 0 13 0 0 2380 10
RP 0 73 73 1001 -90. 90. 5. 5. 10000.
EN
